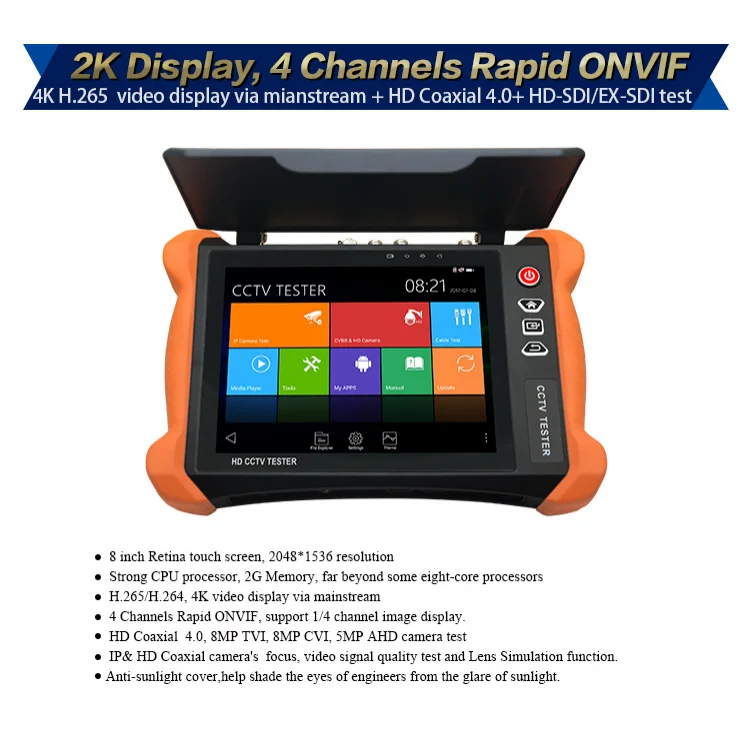

IP CCTV Tester 8MP CVI/ TVI/ AHD 8MP EX-SDI HD-SDI, 3G-SDIcamera test SAV-X9 Series

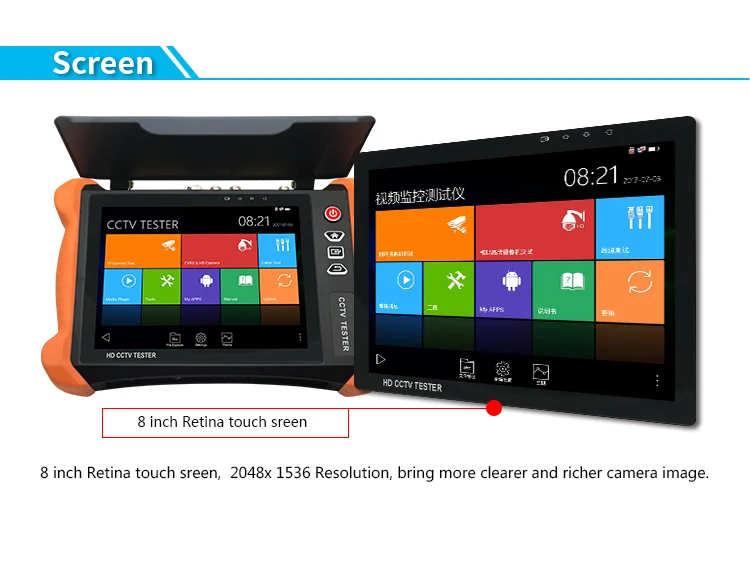

* 8 inch retina touch screen, 2048*1536 resolution
* 8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI*
* H.265/H.264, 4K video display via mainstream
* Chrome browser, test and set Axis camera

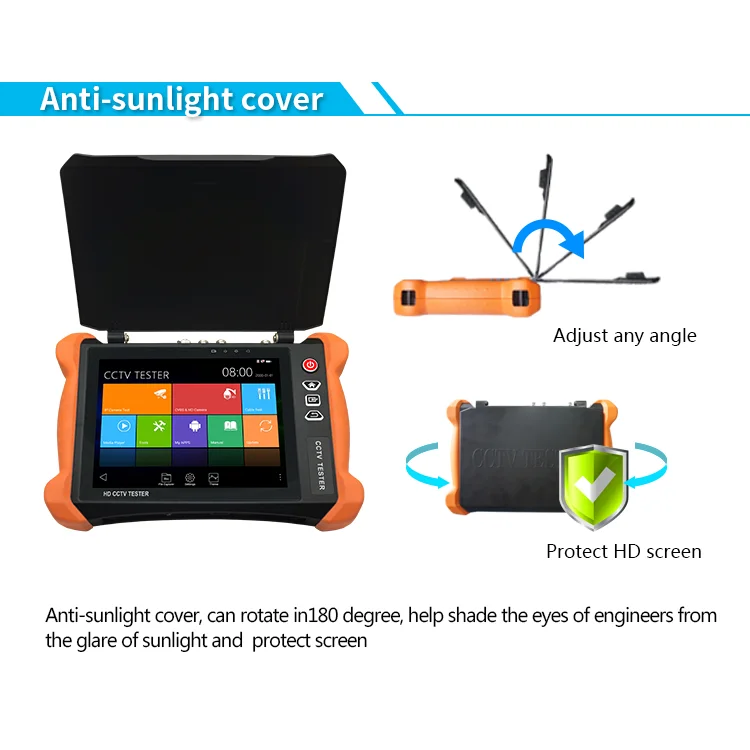

* Anti-sunlight and screen protecting cover
* HDMI input support 4K 60FPS
* HDMI output support 4K
* DC12V 3A, DC 48V PoE power output
* Rapid ONVIF, auto view video and create test report
* RJ45 cable TDR test ,UTP cable quality test
* Backlight buttons, easier to operate in the dark
* 4 channels ONVIF video simultaneous display
Specifications
| LCD |
Item series |
SAV-X9 series |
| Size & Display resolution |
New 8 inch touch screen with retina display ,2048*1536 resolution |
| Video Mode |
CVBS |
1 channel BNC input & 1 channel BNC looped output, NTSC/PAL (Auto adapt) |
| Analog video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement |
| PTZ control, RS485 control, Baud 600-115200bps, Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, etc |
| CVBS loop test |
the tester send and receive color bar generator signal, check BNC cable |
| IP camera test |
IPC test /IPC viewer /Rapid Video/RTSP /ONVIF |
| Rapid Video |
can create testing report |
| Hik test tool |
pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters |
| Dahua test tool |
Dahua camera test, modify the user name, password and IP parameters |
| IP& CVBS test |
IP& CVBS test at the same time, converter test from analog to digital with dual test window |
| Coaxial HD test * |
8MP TVI test,3840 x 2160P 15 FPS, UTC control&call OSD menu* |
| 8MP CVI test, 3840 x 2160P 12.5/15 FPS, UTC control & call OSD menu* |
| 8MP AHD test,3840 x 2160P 15FPS, UTC control & call OSD menu* |
| 8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu* |
| HDMI input |
1 channel HDMI input,support1080P |
| Zoom Image |
4x zoom, to enlarge image, Screen snapshot, record ,save ,view and record and play back |
| Analog Video out |
color bar generator |
Output one channel PAL/NTSC color bar video signal for testing monitor or video cable |
| HDMI output |
1 channel HDMI output, support 1920*1080P |
| |
12V/3A power output |
Output DC12V/3A power out ,supply temporarily power for the camera |
| Power output |
PoE power output |
48V PoE power output, max power 25.5W |
| 5V/2A power output |
USB 5V 2A power output, as a power bank |
| Cable test |
TDR cable test * |
BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM(Built-in cable TDR test port, only for network cable ) |
| Cable tracer |
search BNC cable, network cable and telephone cable from the mess cables |
| UTP cable test |
Test UTP cable connection status and display on the screen. Read the number on the screen |
| RJ45 cable TDR test |
test cable pair status, length, attenuation, reflectivity, impedance, skew etc |
| TesterPlay |
screen projection: tester, android version mobile phone and PC display at the same time |
| Network test |
Trace route, Link monitor , DHCP server, port flashing , Ping test |
| Wi-Fi |
Built in WIFI,speeds150M,display wireless camera image |
| Audio test |
1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone |
| Data monitor |
Captures and analyzes the command data from controlling device,also can send hexadecimal |
| PoE test |
Measurement POE switch or PSE power supply voltage and cable connection status |

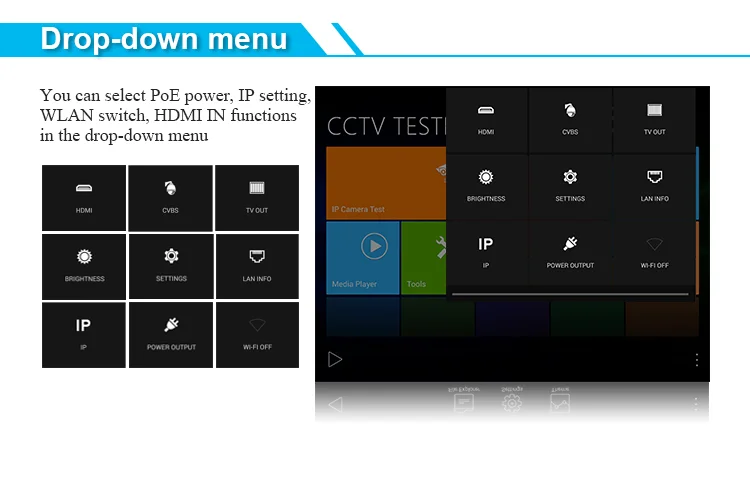

| Drop-down menu |
You can select PoE power switch ,IP setting, WLAN switch, HDMI IN functions etc in any interface |
| External power supply |
DC 12V 2A |
| Battery |
Built-in 7.4V Lithium polymer battery, 7000mAh |
| Rechargeable |
After charging 6-7 hours, normal working time 13 hours |
| Operation setting |
OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish etc |
| Auto off |
1-30 (mins) |
| Working Temperature |
-10℃---+50℃ |
| Working Humidity |
30%-90% |
| Dimension/Weight |
264mm x 182mm x 43mm / 1Kg |
| Below functions are customizable, full model is SAV-X9-MOVTADHS |
| M* |
Digital Multimeter :DC and AC voltage measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement |
| O* |
Optical power meter, Wavelength:1625,1550nm,1490nm,1310nm,1300nm,850nm, measurement range ,-70 ~+10 dBm, for optical power testing and Fiber link loss relative measurement |
| V* |
Visual fault locator :10mW visual fault locator with 650nm wavelength can emit red laser sources to test multi-mode and single mode fiber's bending and breakage, test range 10KM |
| T* |
TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable’s length and short circuit. measurement range 1.2KM |
| ADH* |
8MP CVI/ TVI/ AHD camera test |
ADHS*
|
8MP CVI/ TVI/ AHD, 8MP EX-SDI, HD-SDI, 3G-SDI camera tes |
| |
           |
|
